Toyota CH-R Service Manual: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL NO. 2 OUTER MIRROR COVER (w/ Illumination)

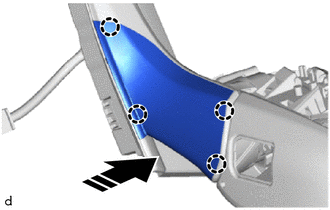

(a) Engage the claws to install the No. 2 outer mirror cover as shown in the illustration.
.png) |
Install in this Direction |
2. INSTALL OUTER MIRROR LIGHT ASSEMBLY (w/ Illumination)
Click here
.gif)
3. INSTALL SIDE TURN SIGNAL LIGHT BULB
Click here
4. INSTALL OUTER MIRROR COVER
Click here
5. INSTALL OUTER MIRROR
Click here
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
PROCEDURE
1. INSTALL OUTER REAR VIEW M ...
Outer Rear View Mirror Cover
Components
COMPONENTS
ILLUSTRATION
*1
OUTER MIRROR
*2
OUTER MIRROR COVER
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
Use th ...
