Toyota CH-R Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP

HINT:

Perform the following procedure only when replacement of a No. 3 windshield outside moulding clip is necessary.

(a) Using a riveter with a nose piece, install 5 new No. 3 windshield outside moulding clips.

HINT:

If the mandrel of the No. 3 windshield outside moulding clip does not come off on the first operation of the rivet gun, slide the rivet gun forward on the mandrel and operate it again.

NOTICE:

  • Do not pry the No. 3 windshield outside moulding clip with the riveter, as this will cause damage to the riveter and mandrel.
  • Confirm that the No. 3 windshield outside moulding clips are seated properly against the vehicle body.

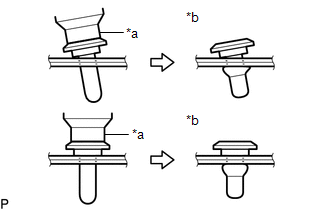

    *a

    Riveter

    *b

    Incorrect

  • Do not tilt the riveter when installing the No. 3 windshield outside moulding clip to the vehicle body.

*a

Riveter

*b

Mandrel

*c

Incorrect

(b) Install the windshield glass sub-assembly.

Click here

2. INSTALL NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP

HINT:

Perform the following procedure only when replacement of a No. 1 windshield outside moulding clip is necessary.

(a) Engage the claws to install 5 new No. 1 windshield outside moulding clips as shown in the illustration.

Install in this Direction

-

-

3. INSTALL WINDSHIELD OUTSIDE MOULDING

(a) Engage the claws to install the windshield outside moulding.

(b) Engage the clip and claws to connect the windshield outside moulding as shown in the illustration.

Install in this Direction

(c) Remove the protective tape.
