Toyota CH-R Service Manual: Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL QUARTER OUTSIDE MOULDING
HINT:
When installing the quarter outside moulding, heat the vehicle body and quarter outside moulding using a heat light.
CAUTION:
- Do not touch the heat light and heated parts, touching the heat light
may result in burns.
.png)
*a
Heated Part
*b
Heat Light
- Touching heated parts for a long time may result in burns.
Standard:
|
Item |
Temperature |
|---|---|
|
Vehicle Body |
40 to 60°C (104 to 140°F) |
|
Quarter Outside Moulding |
20 to 30°C (68 to 86°F) |
NOTICE:
Do not heat the vehicle body and quarter outside moulding excessively.
(a) Clean the vehicle body surface.
(1) Using a heat light, heat the vehicle body surface.
(2) Remove any double-sided tape from the vehicle body.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Remove the release paper from a new quarter outside moulding.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

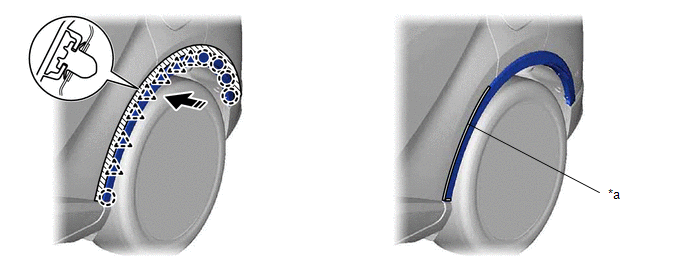

(c) Engage the clips and attach the double-sided tape.
|
*a |
Double-sided Tape |
- |
- |
.png) |
Install in this Direction |
- |
- |
HINT:
Press the quarter outside moulding to install it.
(d) Engage the claws.
(e) Install the 3 screws and clip.
(f) Remove the protective tape.
