Toyota CH-R Service Manual: Components

COMPONENTS

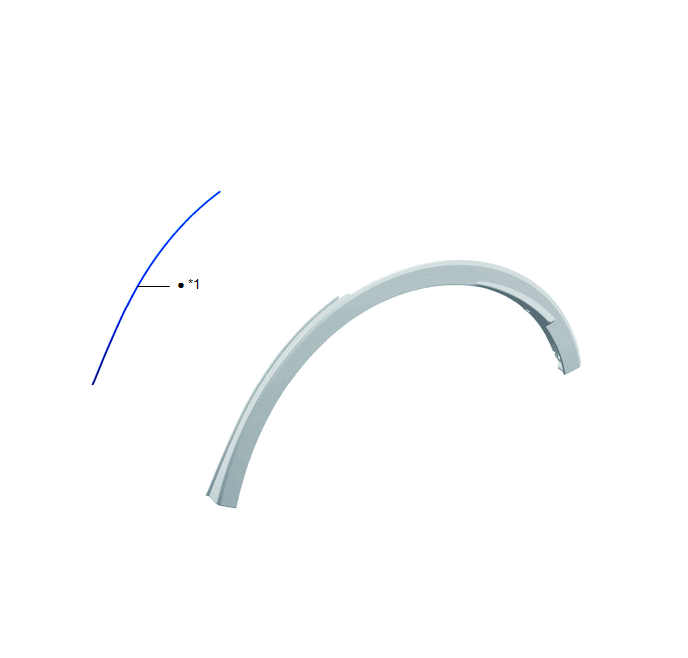

ILLUSTRATION

*1

QUARTER OUTSIDE MOULDING

-

-

ILLUSTRATION

*1

NO. 1 BODY OUTSIDE MOULDING PAD

-

-

Non-reusable part

-

-

    Wheel Opening Moulding(for Rear)
    ...

    Removal
    REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH and LH sides. The procedure listed below is for the LH side. PROCEDURE 1. REMOVE QUARTER OUTSIDE MOULDING ...
