DESCRIPTION

The radio and display receiver assembly and map light assembly (telephone microphone assembly) are connected to each other using the microphone connection detection signal lines.

This DTC is stored when a microphone connection detection signal line is disconnected.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1579

Voice Recognition Microphone Disconnected

Telephone microphone signal is lost.

  • Map light assembly (telephone microphone assembly)
  • Radio and display receiver assembly
  • Harness or connector
  • DCM (Telematics transceiver)

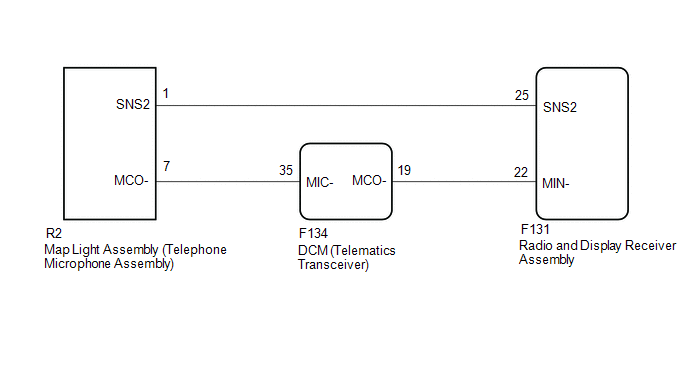

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When replacing the radio and display receiver assembly or navigation ECU, always replace it with a new one. If a radio and display receiver assembly or navigation ECU which was installed to another vehicle is used, the following may occur:
    • A communication malfunction DTC is stored.
    • The radio and display receiver assembly or navigation ECU may not operate normally.
  • If the DCM (telematics transceiver) has been replaced, perform the DCM Activation procedure using the Techstream (w/ Manual (SOS) Switch).

    Click here

PROCEDURE

1.

INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F131-22 (MIN-) - Body ground

Always

Below 1 Ω

*a

Component with harness connected

(Radio and Display Receiver Assembly)

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

OK

2.

CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))

(a) Disconnect the F134 DCM (telematics transceiver) connector.

(b) Disconnect the R2 map light assembly (telephone microphone assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F134-35 (MIC-) - R2-7 (MCO-)

Always

Below 1 Ω

F134-35 (MIC-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

3.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))

(a) Disconnect the F131 radio and display receiver assembly connector.

(b) Disconnect the F134 DCM (telematics transceiver) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F131-22 (MIN-) - F134-19 (MCO-)

Always

Below 1 Ω

F131-22 (MIN-) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

4.

CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))

(a) Disconnect the F131 radio and display receiver assembly connector.

(b) Disconnect the R2 map light assembly (telephone microphone assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F131-25 (SNS2) - R2-1 (SNS2)

Always

Below 1 Ω

F131-25 (SNS2) - Body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

5.

INSPECT DCM (TELEMATICS TRANSCEIVER)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F134-35 (MIC-) - Body ground

Always

Below 1 Ω

*a

Component with harness connected

(DCM (Telematics Transceiver))

NG

REPLACE DCM (TELEMATICS TRANSCEIVER)

OK

6.

INSPECT MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)

(a) Remove the map light assembly (telephone microphone assembly).

Click here

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (SNS2) - 7 (MCO-)

Always

Below 1 Ω

*a

Component without harness connected

(Map Light Assembly (Telephone Microphone Assembly))

OK

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

NG

REPLACE MAP LIGHT ASSEMBLY
