REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the transmission control cable assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Procedure	Necessary Procedure	Effect/Inoperative when not Performed
Disconnect cable from negative battery terminal	Initialize back door lock	Power door lock control system
	Memorize steering angle neutral point	Lane departure alert system (w/ Steering Control)
	Memorize steering angle neutral point	Pre-collision system
Gas leaks from exhaust system	Inspection After Repair	Poor idle, etc. Engine start function, etc.

CAUTION:

When the engine is hot, do not touch high-temperature areas such as the engine or exhaust pipe.
Touching high-temperature areas such as the engine and exhaust pipe could result in burns.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. SECURE VEHICLE

(a) Fully apply the parking brake and chock a wheel.

CAUTION:

Make sure to apply the parking brake and chock a wheel before performing this procedure.
If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Click here

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here

4. REMOVE BATTERY

Click here

5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

6. REMOVE REAR CONSOLE BOX ASSEMBLY

Click here

7. REMOVE NO. 1 ENGINE UNDER COVER

Click here

8. REMOVE REAR ENGINE UNDER COVER LH

Click here

9. REMOVE NO. 2 CYLINDER HEAD COVER

Click here

10. REMOVE RADIATOR COVER

Click here

11. REMOVE NO. 1 AIR CLEANER INLET

Click here

12. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click here

13. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

Click here

14. REMOVE ECM

Click here

15. REMOVE BATTERY CLAMP SUB-ASSEMBLY

Click here

16. REMOVE FRONT FLOOR COVER LH (w/ Cover)

Click here

17. REMOVE FRONT FLOOR COVER RH (w/ Cover)

HINT:

Use the same procedure as for the LH side.

18. REMOVE FRONT FLOOR CENTER BRACE

Click here

19. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

Click here

20. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

(a) Remove 3 nuts and front No. 1 floor heat insulator from the vehicle body.

21. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Move the shift lever to N.

Remove in this Direction

(b) Disconnect the end of the transmission control cable assembly from the floor shift shift lever assembly.

*1	Slider
	Push
	Remove in this Direction

(c) Push in the slider and remove the transmission control cable from the floor shift shift lever assembly as shown in the illustration.

(d) Remove the nut to disconnect the transmission control cable assembly from the control shaft lever.

(e) Remove the clip to disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.

(f) Remove the nut to disconnect the transmission control cable assembly from the transmission control cable support.

(g) Remove the nut.

(h) Disengage the guide to disconnect the transmission control cable assembly from the vehicle body.

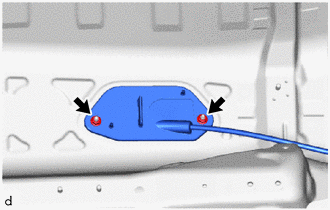

(i) Remove the 2 nuts and transmission control cable assembly from the vehicle body.
